Creating a new property for custom types and aspects

Properties are pieces of metadata associated with a particular custom type and / or aspect. Both types and aspects can have one or more properties.
  1. Click Admin Tools, and then click Model Manager.

    The Model Manager page is displayed.

  2. Click the relevant model from the Custom Models list.

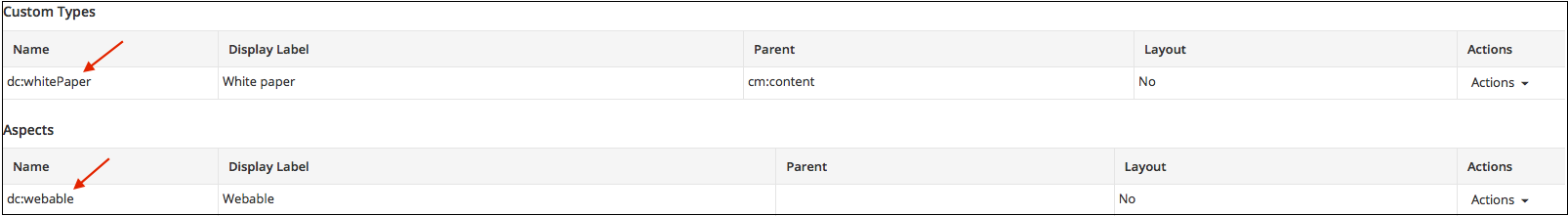

    The selected model page appears. This page shows the existing custom types and aspects associated with the selected model.

  3. To create a new property, perform the following action:
    • Under the Custom Types list, click the type for which you want to create the new property.

      The property page relevant to the selected type is displayed. This is of the format model name:custom type name.

    • Under the Aspects list, click the aspect for which you want to create the new property.

      The property page relevant to the selected aspect is displayed. This is of the format model name:aspect name.

  4. Click Create Property.

    The Create Property window appears.

  5. Enter the details for the new property. Fields marked with an asterisk (*) are required.
    1. Enter a name for the property.

      Only alphanumeric characters, hyphens (-) and underscores (_) are allowed. The property name will automatically prefix the model namespace.

    2. Select an optional display label for the property.

      The display label is shown as the property name to the end users in SkyVault Share.

    3. Enter an optional description of the property.

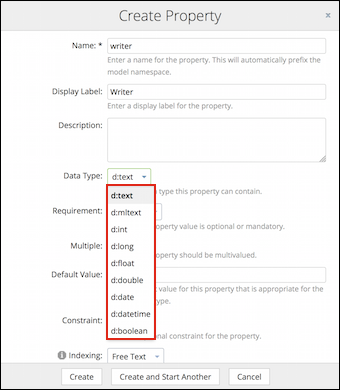

    4. Select the data type this property can contain.

      Data types describe the fundamental types of data the repository will use to store properties. SkyVault supports a wide variety of data types. The available out-of-the-box data types are:
      Option Description
      d:text Specifies a text value or a character string.
      d:mltext Specifies a multilingual text value where many localized representations of the text value may be held.
      d:int Specifies an integer value.
      d:long Specifies a long value. This type is used when a wider range than int is needed.
      d:float Specifies a float value. This data type is mainly used to save memory in large arrays of floating point numbers.
      d:double Specifies a double value. This data type is generally used as the default data type for decimal values.
      d:date Specifies a date value in the format dd/mm/yyyy.
      d:datetime Specifies a date and time value.
      d:boolean Specifies a boolean value which can either be true and false. This data type represents one bit of information and is used for simple flags that track true/false conditions.
  6. Select if the property value is optional or mandatory, and if this is enforced by SkyVault Share.

    The available options are:

    Option Description
    Optional Specifies that the property value is not required and the property can be left blank.
    Mandatory Specifies that the property value is required and must be filled if Edit Properties in SkyVault Share is to be completed. The property will be marked with an asterisk.
  7. Select if the property should be multi-valued.

    The following table shows each data type's support for single or multiple values, with or without constraints.

    Data type Supports single/multi-value properties Constraints supported Additional information
    d:text Multi-value properties
    • List of Values
    • Minimum / Maximum length
    • Regular expression

    d:mltext Multi-value properties
    • List of Values
    • Minimum / Maximum length
    • Regular expression

    d:int

    Single-value properties in Model Manager

    Multi-value properties in SkyVault Share
    • List of Values
    • Minimum / Maximum value
    		 In SkyVault Share, d:int does not support multiple values with constraint.
    d:long

    Single-value properties in Model Manager

    Multi-value properties in SkyVault Share
    • List of Values
    • Minimum / Maximum value
    		 In SkyVault Share, d:long does not support multiple values with constraint.
    d:float

    Single-value properties in Model Manager

    Multi-value properties in SkyVault Share
    • List of Values
    • Minimum / Maximum value

    In SkyVault Share, d:float does not support multiple values with constraint.

    Also, d:float does not support the List of Values constraint in SkyVault Share.
    d:double

    Single-value properties in Model Manager

    Multi-value properties in SkyVault Share
    • List of Values
    • Minimum / Maximum value

    In SkyVault Share, d:double does not support multiple values with constraint.

    Also, d:double does not support the List of Values constraint in SkyVault Share.
    d:date Single-value properties Certain data types should not be used with the List of Values constraints. d:date does not support the List of Values constraint.
    d:datetime Single-value properties Certain data types should not be used with the List of Values constraints. d:datetime does not support the List of Values constraint.
    d:boolean Single-value properties Certain data types should not be used with the List of Values constraints. d:boolean does not support the List of Values constraint.

    If you want the end user to specify multiple values for the property in Edit Properties in SkyVault Share, then select the Multiple check box. For example, if you have created a property, Languages known and you want the end user to be able to specify multiple answers for this property in SkyVault Share, then select the Multiple check box in the Create Property window in Model Manager.

  8. Specify an optional default value for this property.

    The value specified in Default Value in Model Manager is displayed as the default property value in SkyVault Share. Also, the default value should be appropriate for the selected data type. For example, if the data type is d:int, the default value must be an integer.

    The control/layout of Default Value depends on the selected data type. For example, if you select d:text as the data type, then the Default Value layout is a text box, where as if you select d:int as the data type, then the Default Value layout is a spin control.

  9. Select the optional constraint for the property.

    Depending on what constraint option you select, some additional fields are displayed.
    Option Additional fields Condition/Example
    None No constraint applied. No constraint applied.
    Regular expression Regular Expression: Specify a regular expression for the constraint. This field is mandatory.

    Use this constraint if you want the property value specified in SkyVault Share to match the expression specified in the Model Manager.

    For example, if the constraint expression specified in the Model Manager is [a-z]* , then SkyVault Share will accept any value in the range of lowercase a to z.
    Minimum / Maximum length
    • Minimum Length: Specify the minimum length allowed for the property.
    • Maximum Length: Specify the maximum length allowed for the property.

      Both the fields are mandatory.

    		 For example, if the minimum length and maximum length are 1 and 5, respectively, then SkyVault Share will accept any text or integer value in the range of one to five characters or numbers.
    Minimum / maximum value
    • Minimum Value: Specify the minimum value allowed for the property.
    • Maximum Value: Specify the maximum value allowed for the property.

      Both the fields are mandatory.

    		 For example, if the Minimum value and maximum value are 1 and 3, respectively, then SkyVault Share will accept either 1, 2, or 3 as the property value.
    List of Values
    • List of Values: Enter the list of allowed values, with each new item on a new line. This field is mandatory.
    		 For example, if you specify A, B, and C in List of Values, then SkyVault Share will display these values in a drop-down list.
    Java class
    • Class name: Enter the fully qualified name of the class to use as a constraint.
    		 Used for custom constraints implemented in Java.
  10. To enable the property to be used for searching, select the appropriate searching option from the Indexing drop-down list.

    Depending on the data type selected, the following searching options are supported:

    Searching option Description Searchable Supported data types
    None Search is not supported. Use this option if you do not want to use a property for searching. No Non-text data types:
    • int
    • long
    • float
    • double
    • date
    • datetime
    • boolean

    Text date types:

    • text
    • mltext
    • content
    Basic Property is searchable but the values will not be available in the search result filters. Yes Non-text data types:
    • int
    • long
    • float
    • double
    • date
    • datetime
    • boolean
    Enhanced search Use enhanced search if you want to use the property in faceting, stats, sort, and range queries. While this indexing option improves query performance and reduces memory usage, it also requires more disk space for the search index. Yes
    Non-text data types:
    • int
    • long
    • float
    • double
    • date
    • datetime
    Free text Property is searchable but the values will not be available in the search result filters. Yes

    Text date types:

    • text
    • mltext
    • content
    List of values - whole match This indexing option enables you to filter on a property in the search results while searching for the whole term. Yes

    Text date types:

    • text
    • mltext
    • content
    List of values - partial match This indexing option enables you to filter on a property in the search results while searching the property using wildcard characters. Yes

    Text date types:

    • text
    • mltext
    • content
    Pattern - unique matches This indexing option enables you to use unique identifiers which are searched on the basis of the full value of the property. The property itself will not be shown as a filter in the search results. Yes

    Text date types:

    • text
    • mltext
    • content
    Pattern - many matches This indexing option enables you to use identifiers which could be searched on the basis of the full value or via the wild card characters. The property itself will not be shown as a filter in the search results. Yes

    Text date types:

    • text
    • mltext
    • content

    Note: Different values can have an impact on the search performance, memory requirement, and disk storage requirement for your installation. For very large repositories, the values can have a significant impact; however, for most installations the default settings are fine. For properties that will be used for search filters, it is important to use the correct value as shown in the above table.
    Note: For more information on setting up search filters using the Search Manager, see Search Manager.
  11. To create a new property, click Create. To save and create another property, click Create and Start Another or click Cancel if you do not want to save the changes.

    The property created appears in the Properties table for the selected type or aspect. The property name is of the format, prefix:property name.

    Additional information displayed in the table includes the property name, display label, data type, requirement, default value, multivalued, and the actions (Edit and Delete) that can be performed on the property.
